Brooklyn, NY
Status
Completed
Project Type
Educational Facility
Monitored Zone
12,600 Sq. Ft.
Commencement Date
04 February, 2026
Contract Value
Contract
Project Summary
A four-point vibration monitoring installation was completed at PS231K, 360 36th Street, Brooklyn, for Sai Ji Plumbing Inc under NYC DOB Job No. B01282888, protecting the active school and surrounding structures.

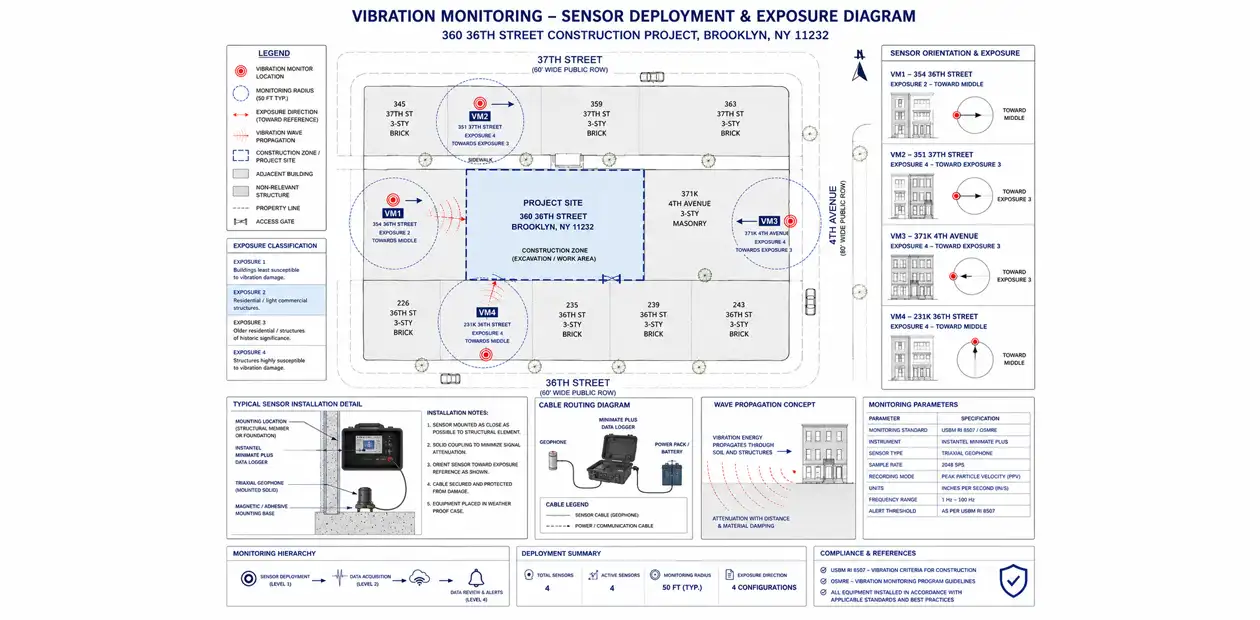

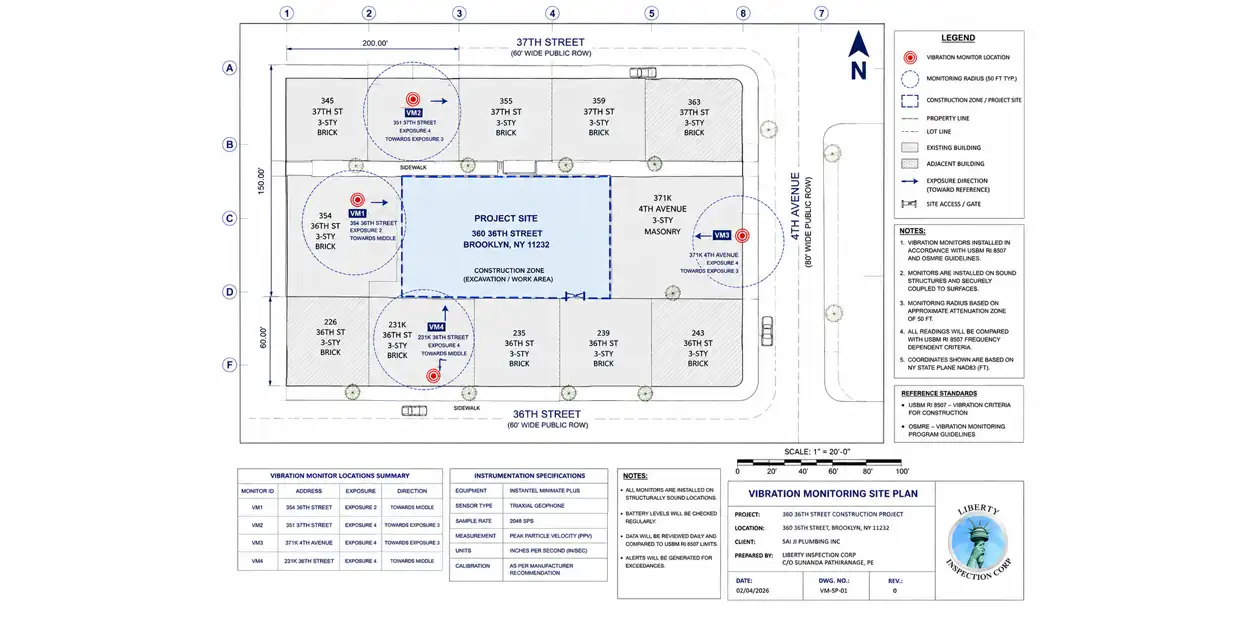

Four Instantel MiniMate Plus seismographs were deployed around the project perimeter on February 4, 2026, at 354 36th Street, 351 37th Street, 371K 4th Avenue, and 231K 36th Street. Each unit was positioned at optimal building exposures to capture all vibration generated by the plumbing construction works. The array provided comprehensive perimeter coverage of the school campus. All equipment was calibrated before deployment and benchmarked against USBM RI 8507 and OSMRE thresholds. PE-certified installation and monitoring reports were produced and maintained for NYC Department of Buildings compliance throughout the entire project duration.
Project Details
- Location: 360 36th Street, Brooklyn, NY
- Monitored Zone: Approx. 12,600 sq. ft. across four perimeter monitoring points
- Structure: 3-story public school building with full basement level
- Monitoring Methods: 4-point perimeter array, USBM RI 8507, PE-certified installation
- Deliverables: PE-sealed install report, weekly data logs, NYC DOB compliance file
Monitoring Scope
4-Point VM Array
Four monitors at key perimeter points around the school campus.
PE-Certified Reports
All installation and monitoring reports sealed by our licensed PE.
DOB Compliance Docs
Reports formatted and maintained per NYC DOB requirements on file.
Pre-Install Survey
Site conditions and exposure orientations confirmed before deployment.
School Campus Safety
Program designed to protect an active occupied school during works.
Perimeter Coverage
Monitors covered all four sides of the construction zone fully.
USBM RI 8507 Standard
All data benchmarked against frequency-based safety limits.
Event File Archives
Complete Instantel event records retained for regulatory reference.
